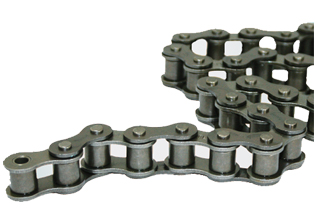

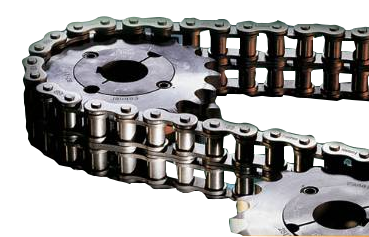

Fenner PLUS Chain

Fenner PLUS chain builds on the heritage and engineering experience of the existing
Fenner product range by optimising the benefits of several performance enhancing
features which work together to give Fenner PLUS chain the optimum combination
of tensile strength, wear resistance and fatigue life. When combined with Fenner
PLUS hardened tooth sprockets, this combination ensures high torque transmission
capability over an extended working life.

- Enhanced performance in hostile environments
- Solid rollers manufactured to achieve extremely high surface hardness ensuring high wear resistance
- Shot peened plates for increased fatigue resistance and extended chain life
- All Fenner PLUS chain plates are progressively punched to give excellent accuracy of both diameter and pitch
- Operates successfully with irregular lubrication
- Special wax lubrication as standard
- Case hardened bearing pins for wear and "stretch" resistance
- EPX Easy Pin eXtraction feature for quick and simple installation

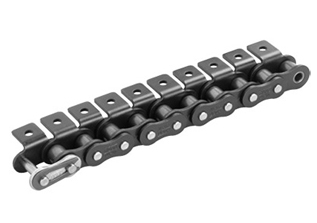

Attachment Chain

A full range of attachment chain available on short delivery times from stock components and base chains.

- Comprehensive range of BS and ANSI chains available from stock
- K & M attachments available for Fenner Standard and Fenner PLUS chains
- Extended pin chains from stock parts
- Special chains available

Fenner Leaf Chain

Various standards of lifting chains available to be cut from stock. Special protective coatings available for chains in aggresive, hostile environments.

- BL, LL & AL series chains in stock
- All lacing configurations supplied
- Available in cut lengths or reels

Available in 4" and 6" pitch chain with extended pin as well as attachment chain

Available for Mining, Cement, Sugar and other industries with custome designed

HRC Couplings

Permitting quick and easy installation by means of Taper Lock® bushes, and offering quick alignment, the semi-elastic general purpose HRC coupling is ideal for use with electric motors.

Jaw Couplings

Absorbing incidental misalignment, shock loads and small amplitude vibrations, Fenner Jaw couplings offer a low cost flexible solution for most applications.

- Ease of alignment
- Fail-safe shaft connection
- Range of element materials available including nitrile, urethane and Hytrel
- Pump spacer variant available
- Quick-fit wrap around element available
- Design powers up to 42.2kW available at 1440rpm

Rigid Couplings

Taper Lock® rigid couplings provide a convenient method of rigidly connecting the ends of shafts. Taper Lock® bushes permit easier and quicker fixing to the shafts with the firmness of a shrunk-on-fit.

- Taper Lock® fixing as standard
- Peripheral speeds of up to 33m/s available
- 8 sizes in the range
- Vertical assemblies possible in FF design

Grid Coupling

Shaft to shaft coupling that are of compac size , yet can handle torque capacity due to their high strengh hardened alloy steel construction

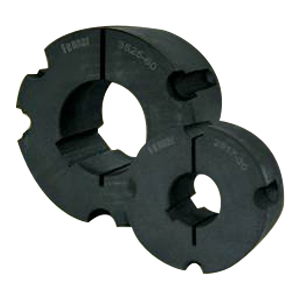

Taper Lock Bushes

applications. It is the most successful shaft fixing in the market place today with a full range of both metric and imperial sizes as well as a full range of weld-on hubs, bolt-on hubs and hub adaptors.

- Ease of installation and removal
- Equivalent to a shrink-on fit on uniform load applications and thus eliminating the cost of a key
- No costly reboring: full range of both metric and imperial available
- Standard range fits up to 125mm/5" shafts
- Special 4-hole feature for balanced assemblies
- Complete short reach range available, for compact lightweight assemblies
- High grade, close grain iron (GG25) material
- Spherodial Graphite (S.G.) iron construction on some sizes to give increase maximum bores

WELD-ON HUBS

- Manufactured from steel to provide convenient means to secure fan rotors, steel pulleys, plate sprockets, impellers etc. to a shaft.
- Shouldered outer diameter allows for easy location
- Taper bored to receive 4 hole Taper Lock® bush sizes 1210 to 5040

BOLT-ON HUBS

- A convenient means to secure fan rotors, steel pulleys, plate sprockets, impellers etc to a shaft
- Welding not necessary
- Taper bored to receive 4 hole Taper Lock® bush sizes 1210 to 3040

HUB ADAPTORS
- For use with parallel bore eliminating the cost of drilling, tapping and taper boring
- Keyed version also available for heavy duty applications
- Taper bored to receive 4 hole Taper Lock® bush sizes 1008 to 4040

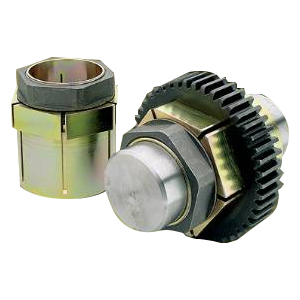

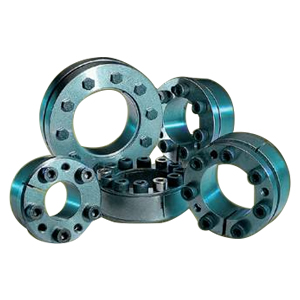

FenLock Cone Clamping Elements

FenLock cone-clamping elements provide a wide range of keyless shaft/hub fixing assemblies offering simple installation, increased shaft strength and high torque transmission capacity.

- Wide range of standard designs, solutions for all applications
- Eliminates the cost and complexity of keyways. Also allow the use of smaller shafts, as keyway does not weaken the shaft
- Extensive bore range from 20mm up to 900mm
- Allows for axial and angular adjustment of mounted components
- Excels at transmission high torques
- Good resistance to alternating torques
- Simple installation and disassembly
- Eliminates fretting corrosion
- Easy selection based on torque and shaft diameter
- Includes shrink disks

Series M - Coaxial Gearbox

The innovative Fenner Series M coaxial gearbox is the culmination of many years expertise. Designed to be utilised in a wide variety of situations it combines high load carrying capacity with high efficiency and reliability and is manufactured using the highest quality materials and compounds.

- Ratios from 5:1 to11,000:1, up to 11,00Nm
- Highly efficient gearing, saving energy and running costs
- Dimensionally interchangeable with other manufacturers
- Innovative motor adaptor uses standard IEC interface
- Oil tight gearhead enables motor removal without spillage
- ATEX certification available
- Foot or flange mounting

Series C - Helical Worm Gearbox

Modern design techniques and high quality components enable the Fenner Series C helical worm gear unit to out perform any other gearbox in terms of lowest cost/Nm. The Series C right angle range provides a highly efficient and compact solution to meet most requirements.

- Ratios from 8:1 to 13,500:1 up to 10,00Nm
- Highly efficient gearing, saving energy and running costs
- Dimensionally interchangeable with other manufacturers
- Innovative motor adaptor uses standard IEC interface
- Oil tight gearhead enables motor removal without spillage
- ATEX certification available
- Foot, flange or shaft mountin

Series F - Parallel Shaft Gearbox

The newly improved Fenner Series F range is primarily designed as a shaft mounted unit incorporating an integral torque reaction bracket. The compact range of parallel shaft mounted geared motors and speed reducers offer high efficiency and interchangeability with other leading brands.

- Ratios from 4.5:1 to 5,700:1 up to 16,500Nm
- Highly efficient gearing, saving energy and running costs
- Dimensionally interchangeable with other manufacturers
- Innovative motor adaptor uses standard IEC interface
- Oil tight gearhead enables motor removal without spillage
- ATEX certification available
- Flange or shaft mounting

Series K - Bevel Helical Gearbox

The Series K range incorporates all Fenners core design features in a highly efficient yet flexible bevel helical drive. With high load carrying capabilities and increased efficiency over worn units, the right angled Series K range is proven to save energy and running costs.

- Ratios from 8:1 to 7,250:1 up to 12,300Nm
- Highly efficient gearing, saving energy and running costs
- Dimensionally interchangeable with other manufacturers
- Innovative motor adaptor uses standard IEC interface
- Oil tight gearhead enables motor removal without spillage
- ATEX certification available
- Foot flange or shaft mounting

Fenner SMSR - Shaft Mounted Speed Reducer

The Fenner SMSR PowerPLUS offers a rugged design and a 50% increase in the power to weight ratio over the older version. The PowerPLUS is more compact for easier handling and features an increased range of bore sizes.

- Compact, rugged design
- Bore sizes ranging from 20mm to 190mm available
- Metric and imperial reducing bushes available
- Easy fit backstops available
- Comprehensive output speeds available with a simple Fenner belt drive
- ATEX certification available

Taper Grip™
The unique Taper Grip™ bush locking system allows Fenner SMSR's to be secured onto the driven shaft thus overcoming the difficulties that can be experienced with other methods of mounting - Particularly in corrosive environments.

- Transmits 300% more torque and accommodates shaft tolerances to h11
- Resistant to fretting corrosion
- Allows easy removal of gear unit
- Wide selection of metric and imperial bush sizes available

Fenner Series W - Wormbox

A modern modular designed aluminium wormbox available in a vast range of sizes and ratios for dependable cost effective solutions. The unit uses a patented modular lightweight aluminium gear case, which combines rigidity with strength to ensure a long reliable working life.

- Range 0.6kW - 15kW
- Dimensionally interchangeable with the market leaders
- Versatile mounting
- Excellent mechanical strength whilst being especially lightweight
- Accepts standard IEC motors

Fenner Cyclo - Cycloidal

The revolutionary design of the Cyclo discs offers extra smooth and silent operation and excellent resistance to overloads. Extremely high ratios can be achieved within a very small envelope offering high efficiency in a very compact package.

- High overload capacity up to 500% and high efficiency, even at high reduction ratios
- Compact size and reduced noise levels
- High reliability with 2 years warranty
- Exceptional life compared to other types of gearing

Fenner Series P - Bevel-Helical

The robust Series P gearboxes have a modular construction enabling short leadtimes. They are available in double, triple and quadruple reduction gear stages, having a maximum output torque range of up to 900,000Nm.

- Parallel shaft helical gearboxes
- Right angle bevel-helical units
- Versatile mounting positions
- Motorised or reducer options
- Hollow bore or output shaft mounting
- Ratios up to 500:1

Fenner Spiral T - Spiral Bevel

The smallest drive in the range offers a compact and highly efficient right angle and T drive. The utilisation of spiral bevel gears within the lightweight alloy casing delivers low noise emission throughout the speed band.

- Compact and efficient bevel gearbox
- Ratios 1:1 and 2:1 available
- 3 shaft design options
- Universal mounting
- Lightweight aluminium casing
- Low noise emissions

Hygienic Geared Drives

In environments that demand an especially high level of hygiene or use aggressive cleansing agents that corrode traditional drives, the Fenner range of Hygienic stainless steel geared drives provides complete inter-changeability with any existing motor population for simple upgrades offering up to 15 times the service life.

The hygienic characteristics are further complemented by the smooth exteriors free from indentations and catchment areas to prevent the accumulation of dirt, speeding up the cleaning process.

7 types, up to 3,000Nm
- Interchangeable with European standard footprints
- Dry fit IEC mounting
- Filled with USDA H1 food grade lubrication and Blue FDA approved oil seals
- Stainless steel AISI 316 anti condensation breather
- Hygienic design, smooth and free draining surfaces
- Corrosion and chemical resistant high-quality electro-polished stainless steel AISI 316
- No ID plates, specifications are etched on the surface
- IP66 (optional IP69 (K)) to withstand sanitary washdown

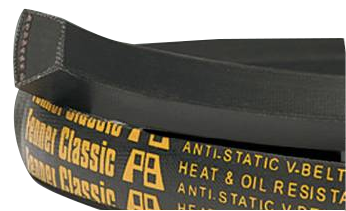

Classic V Belt

Ideal for high ratio or small pulley drives, the Fenner® Classic V belt has a specially treated jacket to give superior anti-static, heat and oil resistant properties which exceeds the new industry anti-ignition standards.

- Accuracy and stability of length
- Complete range of lengths and sections
- 'One Shot' tensioning for fit-and-forget reliability
- Extended temperature range -40°C to +70°C
- PB® (Precision Build) Technology, eliminating the need for matching
- Fully approved by all international standards
- BS 3790 (British Standard)
- ISO 4184 (International Standards Organisation)
- RMA IP20
- DIN 2215 (German Institute for Standardisation)
- Static conductive in accordance with ISO 1813
- Conforms to American Petroleum Institute specifications

Ultra PLUS Wrapped Wedge Belt

Designed for use in single or multi-belt drives, Fenner® Ultra PLUS transmission belts deliver maximum cost and performance benefits by utilising low elongation polyester cords and abrasion resistant impregnated jacket fabric.

- Ideal for use in single or multi-belt drives
- 'One Shot' tensioning for fit-and-forget reliability
- Extended temperature range -55°C to +70°C
- PB® (Precision Build) Technology, eliminating the need for matching
- Meets highest industry standards for static conductivity and non-ignition properties
- Conditionally oil resistant
- Complete range of lengths and sections
- Fully approved by all international standards
- BS 3790 (British Standard)
- ISO 4184 (International Standards Organisation)
- RMA IP22 (Rubber Manufacturers Association)
- DIN 7753 (German Institute for Standardisation)
- Electrically conductive in accordance with ISO 1813
- Conforms to American Petroleum Institute specifications

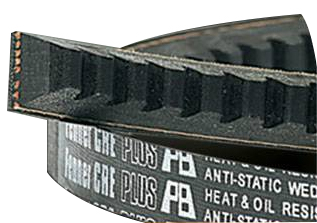

Ultra PLUS CRE Cogged Raw Edge Belt

The Fenner® Ultra PLUS CRE belt is ideal for use in high ratio applications often required by today's compact drive envelopes. Combining flexibility with structural stability, it offers higher running efficiency than wrapped belts.

- Special compounds improve flexibility and strength
- Higher running efficiency than wrapped belts
- Run cooler than wrapped belts
- Extended temperature range -30°C to +70°C
- PB® (Precision Build) Technology, eliminating the need for matching
- Conditionally oil resistant
- Fully approved by all international standards
- BS 3790 (British Standard)
- ISO 4184 (International Standards Organisation)
- DIN 7753 (German Institute for Standardisation)
- Static conductive in accordance with ISO 1813
- Conforms to American Petroleum Institute specifications

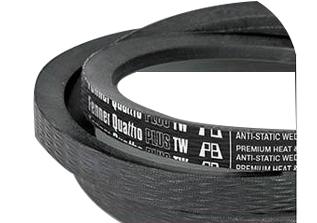

Quattro PLUS Twin Wrapped Wedge Belt

The Fenner® Quattro PLUS TW is a wrapped belt that has been specifically designed with a 2-ply outer jacket to reduce belt elongation and improve stability. Suitable for a wide range of industries and uses, this maintenance free belt transmits 30% more power than traditional wrapped belts.

- State-of-the-art wrapped chloroprene rubber construction
- Higher modulus polyester cord reduces belt elongation
- 2-ply outer jacket improves belt length stability and improves abrasion resistance
- Suitable for counterbending/back-tensioners
- Suitable for clutches
- Extended temperature range -30°C to +80°C
- PB® (Precision Build) Technology, eliminating the need for matching
- Conditionally oil resistant
- Fully approved by all international standards
- BS 3790 (British Standard)
- ISO 4184 (International Standards Organisation)
- DIN 7753 (German Institute for Standardisation)
- Electrically conductive to ISO 1813
- Conforms to American Petroleum Institute specifications

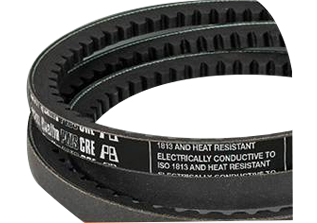

Quattro PLUS CRE heavy duty, cogged raw edge EPDM wedge belt

The Fenner® Quattro PLUS CRE is a step forward in belt technology. It's high performance unique polyester tension member and EPDM contact section allows it to transmit 26% more power than our traditional CRE range and offers up to 15% longer service life.

- Synthetic rubber EPDM heavy duty wedge belt
- Embedding compound for stable power transfer
- Enhanced tooth profile improves belt flexibility, reducing bending resistance and increasing efficiency and life
- Unique construction of the polyester tension member improves accuracy and stability of belt length
- Reduced belt weight lowers inertia and reduces vibration allowing smoother running
- Lower pre-tensioning force allows longer bearing life and extends maintenance periods between re-tensioning
- Abrasion resistant compound for enhanced durability
- Extended temperature range -40°C to +130°C
- PB® (Precision Build) Technology, eliminating the need for matching
- Conditionally oil resistant
- Fully approved by all international standards
- BS 3790 (British Standard)
- ISO 4184 (International Standards Organisation)
- DIN 7753 (German Institute for Standardisation)
- Electrically conductive to ISO 1813
- Conforms to American Petroleum Institute specifications

Concord PLUS Banded Belt

The advantages of Fenner wedge belts are combined with a neoprene/fabric band to form a single belt. Ideal for applications where pulsating or shock loads cause instability in matched sets of wedge or V belts, Fenner Concord PLUS banded belts can provide the ideal solution by providing sufficient lateral rigidity to eliminate such problems.

- Eliminates belt whip, belt twist and belt turn over
- Ideal for drives with pulsating loads
- Heat and oil resistant
- Supplied to suit either Fenner® ISO standard Taper Lock® pulleys or RMA standard pulleys
- Fully approved by all international standards
- BS 3790 (British Standard)

PolyDrive PLUS Ribbed Belts

Fenner PolyDrive PLUS ribbed belts are an ideal solution for compact drives in household appliances and heavy machinery. The ribbed belts enable economic solutions even under difficult drive conditions, such as large transmission ratios, high belt speeds, small pulley diameters and back idler pulleys.

- High belt speeds up to 60m/s (belt speeds above 40m/s require special pulley materials)
- Designed for high transmission ratios
- High power output
- Low vibration, efficient belt
- Long service life
- Available in PJ, PK, PL & PM profiles
- Fully approved by all international standards
- Geometry of each section complies to ISO 9982
- Static conductive to ISO 1813

Classical Timing Belt

Fenner Classical Timing Belts are the original square toothed belts. In conjunction with their associated pulleys classical belts provide an economic solution for light drive applications.

- Classical profile imperial pitch belts
- Wide range of belts and Taper Lock® pulleys
- Efficient and economical
- Fully approved by all international standards
- SO 5296 (International Standards Organisation)
- BS 4548 (British Standard)

HTD Timing Belt

Fenner HTD timing belts are the first generation of metric curvilinear tooth form synchronous belts for high torque drives. With their associated Taper Lock® Pulleys, they form cost effective drives for medium duty applications.

- Curvilinear tooth improves stress distribution for higher tooth strength
- Offers a more compact drive than classical timing belt drives
- Full range of Taper Lock® pulleys in 5, 8 and 14mm pitch
- Fully approved by all international standards
- ISO 13050 (International Standards Organisation)

Torque Drive PLUS 3

The state-of-the-art Fenner Torque Drive PLUS 3 (TDP3) works with standard HTD pulleys to provide the ultimate combination of power capacity, low noise and high accuracy in a belt drive. Manufactured using the latest materials and production technology, Fenner Torque Drive PLUS 3 continues to push the boundaries of belt
engineering.

- The highest power rating for rubber/glassfibre belts
- Enhanced compounding and glassfibre cord excel in highly dynamic applications
- Minimum backlash for precise positioning
- Ultra compact and cost effective drives
- Polyamide facing layer reduces noise and belt tooth wear
- Runs optimally on standard HTD pulleys
- Fully approved by all international standards
- ISO 13050 (International Standards Organisation)
